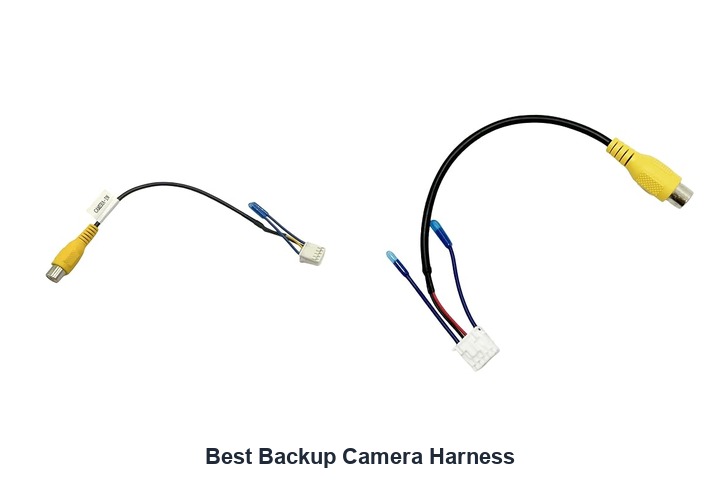

Top 10 Best Backup Camera Harness Picks That Impress

The best backup camera harness has become a key part of modern vehicle safety, linking a reverse camera to the display with dependable signal flow. As automotive electronics grow more integrated, the wiring layer matters just as much as camera resolution. Connector design, shielding, pin compatibility, and weather resistance can influence image stability in demanding conditions, from daily commuting to utility-vehicle use.

A quality backup camera wiring harness may also simplify upgrades while reducing the risk of loose connections, electrical noise, or difficult troubleshooting. Yet harnesses vary widely in materials, vehicle fitment, installation style, and support for factory or aftermarket systems.

Vehicle-specific rear-view camera harness designs add another layer of compatibility to consider. Continue reading to see which features separate promising options from ordinary replacements.

best backup camera harness: Top Picks

Image	Product	Buy
Top Picks- 1	10 Pin Backup Camera Cable Wiring Harness Adapter Connector Video Best for: Standard camera setups	Check Price On Amazon
Top Picks- 2	10 Pin Backup Camera Harness Adapter for Android Car Stereo Best for: Android stereo users	Check Price On Amazon
Top Picks- 3	RED WOLF Car Stereo Backup Camera Harness RCA Wiring Adapter Best for: RCA stereo upgrades	Check Price On Amazon
Top Picks- 4	RED WOLF 24-Pin Reverse Camera T-Harness w/12V to 6V Converter Best for: Voltage conversion installs	Check Price On Amazon
Top Picks- 5	68189124AC Tailgate Rear View Backup Park Assist Camera Wiring Harness, Best for: Tailgate parking systems	Check Price On Amazon

1. 10 Pin Backup Camera Cable Wiring Harness Adapter Connector Video

Best for: Android stereo 10-pin installers.

A 10-pin male-to-female RCA connector links an Android car stereo with a 10-pin socket to a backup camera. Its real-time video-display support lets the screen show the camera feed when the vehicle shifts into reverse, while the plug-style format keeps the connection focused on aftermarket-radio installation.

The RCA cable format carries the camera signal, and the 10-pin count matches the specified Android-radio socket. Male-to-female connector gender helps bridge the stereo and camera wiring without changing the stated interface. Because the listed compatible device is an Android car stereo with a 10-pin socket, buyers should verify that exact socket before installation.

Pros

• 10-pin connector matches Android stereos with a 10-pin socket
• RCA cable type carries the backup-camera video signal
• Male-to-female ends support the listed stereo-to-camera connection
• Real-time video display activates with reverse-camera use

Cons

• Compatibility is limited to Android stereos with the specified 10-pin socket

Choose this harness for an Android-radio replacement that has a matching 10-pin socket and uses an RCA camera connection. It suits buyers who want reverse-triggered video without changing to a different connector format.

2. 10 Pin Backup Camera Harness Adapter for Android Car Stereo

Best for: 12V Android-radio wiring projects.

A 10-pin male-to-male RCA harness handles backup-camera connectivity for Android car stereos with a 10-pin socket. Its constant DC 12-volt requirement gives installers a clear electrical boundary, while the reverse-video function sends a parking-camera view to the radio when the vehicle shifts into reverse.

The harness accepts a maximum of 12 volts of direct current, so it is intended for stable 12V systems rather than 24V or unstable voltage. Its 10-pin RCA connector is listed for Android radios ranging from 7-inch through 12-inch sizes, including the listed 7/8/9, 9.7/10.1, and 12-inch groupings. Solder or heat-shrink connections are recommended.

Pros

• 10-pin connector fits the stated Android-radio socket format
• 12V DC maximum defines the compatible electrical supply
• Male-to-male connector gender suits the listed connection layout
• Reverse shifting triggers real-time parking-video display

Cons

• It cannot be used on 24V or unstable-voltage systems

This is a practical pick for an Android-radio installer working with a stable 12V vehicle circuit. Use it where soldered or heat-shrunk connections are acceptable and the radio has the specified 10-pin interface.

3. RED WOLF Car Stereo Backup Camera Harness RCA Wiring Adapter

Best for: Listed Dodge, Chrysler, and Jeep vehicles.

A three-pin male-to-female RCA adapter covers a broad set of Dodge, Chrysler, Jeep, and Volkswagen Routan applications. That vehicle-specific fitment lets owners connect an aftermarket radio or backup camera while retaining the stated 5-volt electrical limit and RCA signal path.

The compatibility list includes Dodge Ram 1500, 2500, and 3500 models from 2009-2012, plus Caravan and Grand Caravan models from 2008-2020. It also names Chrysler 200 from 2011-2014, Jeep Grand Cherokee from 2008-2013, and Volkswagen Routan from 2009-2013. Durable connectors and high-speed operation are listed attributes for the three-pin RCA harness.

Pros

• Three-pin connector matches the listed vehicle-radio harness format
• RCA cable type supports aftermarket-radio and camera connections
• Male-to-female ends simplify the specified adapter connection
• 5V maximum voltage fits the stated electrical specification

Cons

• Fitment depends on the exact vehicle model and year listed

Pick this harness when your Dodge, Chrysler, Jeep, or Volkswagen Routan appears in the compatibility list. It is aimed at owners adapting a factory camera connection to an aftermarket radio through an RCA interface.

4. RED WOLF 24-Pin Reverse Camera T-Harness w/12V to 6V Converter

Best for: Toyota OEM-camera retention with aftermarket radios.

A 24-pin T-harness combines a 12V-to-6V converter with Toyota reverse-camera retention. That voltage conversion lets an aftermarket radio continue using the OEM camera connection, provided the vehicle has the matching 24-pin plug and a usable reverse trigger.

The single included harness uses a 24-pin connector and converts 12 volts to 6 volts for the retained camera circuit. Installation requires checking reverse-gear power and seating the 24-pin plug fully; the reverse-trigger wire must connect to the reverse-light positive or a matched trigger input. RED WOLF identifies the model for Toyota applications.

Pros

• 24-pin T-harness matches the specified Toyota connector format
• 12V-to-6V converter supplies the stated OEM-camera voltage
• OEM reverse-camera retention avoids replacing the factory camera
• Reverse-trigger wiring supports aftermarket-radio switching

Cons

• A mismatched 24-pin plug or missing reverse signal prevents the intended installation

Use this harness when a Toyota owner is replacing the factory radio but wants to retain the OEM reverse camera. Confirm the 24-pin connection and reverse-light trigger before choosing it.

5. 68189124AC Tailgate Rear View Backup Park Assist Camera Wiring Harness,

Best for: 2013-2018 Ram tailgate-camera repairs.

Part number 68189124AC identifies a one-piece tailgate rear-view camera wiring harness for Dodge Ram and Ram trucks. Its vehicle-specific replacement role lets owners address the camera wiring on Ram 1500, 2500, or 3500 trucks from the listed 2013-2018 model range.

The package contains 1 car-camera wiring harness, with a unit count of 1 and one listed pack. Fitment covers Dodge Ram 1500 from 2013-2018, Ram 2500 from 2013-2018, and Ram 3500 from 2013-2018. The replacement part number gives buyers a concrete cross-reference for matching the existing tailgate-camera harness.

Pros

• 68189124AC provides a specific replacement-part reference
• One included harness targets a direct camera-wiring replacement
• 2013-2018 Ram 1500 coverage narrows the fitment check
• 2013-2018 Ram 2500 and 3500 coverage adds truck compatibility

Cons

• The listed fitment is limited to Ram 1500, 2500, and 3500 trucks from 2013-2018

This harness fits buyers repairing the tailgate camera wiring on a listed 2013-2018 Ram truck. Match part number 68189124AC and the exact truck model before ordering.

6. Backup Camera Wiring Harness Compatible with F150 2011 2012 2013

Best for: 2011-2014 Ford F-150 camera replacement.

Part BL3Z-14A411-A identifies a single replacement harness for the rear camera on Ford F-150 trucks. Its 2011-2014 fitment gives owners a targeted wiring option for restoring the reversing-camera connection rather than selecting a universal harness with unspecified vehicle coverage.

The product lists compatibility with F-150 model years 2011, 2012, 2013, and 2014. One wiring harness is included, with a unit count of 1 and one pack listed. The manufacturer describes the material as premium quality and says the harness was tested and certified to meet or exceed OEM quality standards.

Pros

• BL3Z-14A411-A supplies a precise replacement-part cross-reference
• Four listed F-150 model years clarify the intended fitment
• One-piece package matches a single-harness replacement need
• OEM-quality testing supports the stated replacement purpose

Cons

• It is not listed for F-150 model years outside 2011-2014

Choose this option for a 2011-2014 Ford F-150 with a rear-camera harness matching BL3Z-14A411-A. It suits owners seeking a vehicle-specific replacement for reversing-camera wiring.

7. Tailgate Backup Camera Wiring Harness Compatible with Ford F350 F450

Best for: 2013-2016 Ford Super Duty owners.

PBT material gives this one-piece harness heat resistance and aging resistance for the OEM camera system in Ford Super Duty trucks. Full PE fire-retardant pipe coverage adds a protective layer around the wires, supporting a replacement connection for 2013-2016 F-350 and F-450 models.

The harness replaces FC3Z-14A412-A, FC3Z-14A412-A, or DC3Z-14A412-A, giving buyers multiple part-number references to compare. Fitment is listed for 2013-2016 Super Duty trucks with the OEM Ford backup camera. Its single-unit format keeps the purchase focused on the tailgate camera wiring rather than a complete camera assembly.

Pros

• PBT construction provides the listed heat and aging resistance
• PE fire-retardant pipe covers the wires against damage
• 2013-2016 fitment targets the stated Super Duty model range
• Multiple replacement numbers simplify part-number comparison

Cons

• Fitment requires a 2013-2016 Super Duty truck with the OEM Ford camera

This harness is suited to Ford F-350 and F-450 owners repairing OEM backup-camera wiring on listed 2013-2016 trucks. Confirm the camera system and one of the stated replacement numbers before installation.

8. RED WOLF Reverse Camera Retention Wiring Harness w/RCA Plug for

Best for: Non-Bose GM factory-audio systems.

A three-pin male-to-female RCA harness retains a reverse-camera connection on selected IO4, IO5, and IO6 factory audio systems with an 8-inch screen. Its heat-resistant attribute supports the wiring conversion, while the RCA plug provides the stated camera interface for compatible non-Bose vehicles.

The harness accepts up to 12 volts of direct current and uses RCA cable construction for the camera signal. It is not for Bose systems or factory navigation with a 7-inch screen, and the HMICM module connector must match the vehicle device. If no trigger appears, the reverse-trigger wire must connect to the vehicle signal and the camera input must be set to NTSC.

Pros

• Three-pin connector matches the specified harness format
• RCA plug supports the listed reverse-camera video connection
• 12V maximum voltage defines the stated electrical limit
• Heat-resistant construction addresses the listed operating attribute

Cons

• It excludes Bose systems and factory navigation with a 7-inch screen

Choose this harness for a compatible non-Bose GM factory system with IO4, IO5, or IO6 coding and an 8-inch audio screen. Verify the HMICM connector and NTSC camera setting before installation.

9. 10Pin Wiring Harness Backup Camera Video Input Adapter for Android

Best for: Short-cable Android stereo installations.

A 7.8-inch copper-core cable uses a 10-pin male-to-female connector to carry backup-camera video into an Android car stereo. The short length suits installations where the radio socket and adapter connection are close, while the integrated Wi-Fi and Bluetooth signal cable removes the need to connect two separate cables.

The 10-pin connector is listed as compatible with most Android car stereos, and the copper core supports stable, fast video display. The AUX cable classification identifies its signal-cable format, while the self-contained Wi-Fi and Bluetooth lead uses the same plug-in arrangement. Buyers should check the radio socket and the installation position shown by the product.

Pros

• 7.8-inch length suits short radio-to-harness routing
• Copper-core construction supports the stated stable video signal
• 10-pin connector matches the listed Android-stereo interface
• Integrated Wi-Fi and Bluetooth lead avoids two separate cables

Cons

• The 7.8-inch cable length may not reach installations requiring a longer route

This adapter fits Android-radio owners who need a short connection from the stereo socket to the camera-video input. It is especially useful when one 10-pin plug must handle both camera video and the listed Wi-Fi or Bluetooth signal lead.

10. PAC CAM-TY12 Reverse Camera Harness (for Select 2014.5 to 2017

Best for: Select Toyota and Scion radio replacements.

A prewired 6-volt output wire lets the PAC CAM-TY12 retain an OE backup camera during a radio replacement. The same integrated 6-volt output can power a separately purchased 6-volt aftermarket camera, giving select Toyota and Scion vehicles two camera-installation paths through one harness.

The harness is listed for Toyota 2016 Scion FRS, iM, and tC vehicles across all trim levels, while the title covers select 2014.5-2017 applications. One install harness and a manual are included, and the product carries a one-year warranty. Use with the PAC RP4.2-TY11 interface is specified for OE-camera retention.

Pros

• Prewired 6V output supports OE camera retention
• Integrated 6V output can power a compatible aftermarket camera
• 2016 Scion FRS, iM, and tC coverage spans all trim levels
• Included manual and one-year warranty support the installation purchase

Cons

• The aftermarket-camera power function is limited to 6-volt camera models

Select this harness for a listed Toyota or 2016 Scion vehicle receiving a radio replacement. It suits buyers retaining the OE camera with a PAC RP4.2-TY11 interface or adding a separate 6-volt camera.

How to Choose the Best Backup Camera Harness

Vehicle compatibility and pinout

Start with the exact vehicle year, trim, body style, and factory camera position, then compare the harness plug against the original connector rather than relying on a general fit claim. Confirm the terminal count, keying tabs, locking clip, and pinout at both the camera and headunit ends. Some vehicles route the signal through a control module, so a camera-location match alone does not establish compatibility.

A true plug-and-play harness preserves factory wiring and removes splice points; a universal pigtail suits custom installations only when you are comfortable identifying every circuit. Choose the vehicle-specific, matching-pin harness for factory-camera replacement.

Signal format and connector type

Identify the camera’s video format before selecting the harness. Composite systems use a shielded RCA-style video path, while digital cameras require their matching data connector and cannot share a simple analog lead. Check the cameraside plug, displayside plug, and every separate power and reverse-trigger lead against the equipment’s sockets and wiring diagram.

Good harnesses label video, ground, ignition power, and reverse input clearly, with consistent color coding and secure terminals. Pick an RCA harness for analog screens and replacement cameras; choose the exact digital connector harness for an OEM digital system, with no format adapters in the signal path.

Cable length and routing

Measure the complete route from the camera to the display, interface module, or radio, following the actual trim path rather than a straight line. Add extra length for tailgate movement, hinge loops, service slack, and bends around interior panels; a useful reserve is 12 to 24 inches beyond the measured run. Avoid excess cable packed tightly behind the radio, because sharp coils invite signal and strain problems.

Look for supple insulation that bends without flattening, plus abrasion resistance where the lead crosses metal. Choose a harness matching the measured route with 12 inches of spare length for sedans and 24 inches for tailgates or vans.

Weatherproofing and build quality

For bumper and tailgate installations, insist on sealed connectors with locking tabs, tight grommets, and molded backshells that keep water away from terminals. Tinned copper or another corrosion-resistant terminal finish is preferable to bare steel, while thick, flexible insulation withstands road splash, heat, and repeated flexing. Examine the transition between cable and plug: a long strain relief and uniform molding indicate better support than a sharp, loose exit.

Weather exposure demands an automotive-rated harness rather than an indoor-style adapter. Choose the fully sealed, strain-relieved harness with corrosion-resistant terminals for exterior cameras; use a standard molded harness only inside the protected cabin.

Installation support and overall value

Installation support matters most when the vehicle wiring is unfamiliar or the harness passes through a tailgate. Favor instructions that show connector orientation, terminal numbers, camera polarity, headunit input, and reverse-trigger routing instead of a vague color chart. Included push clips, replacement retainers, extension leads, grommets, and grounding guidance reduce improvisation and protect the finished route.

Match warranty coverage to the connector quality and serviceability: clear replacement terms are useful, but they do not compensate for loose plugs or missing diagrams. Choose the vehicle-specific kit with a complete pinout, clips, extension, and grounding instructions for the easiest reliable installation; choose a bare adapter only for experienced installers with factory documentation.

Which Should You Choose?

• If your Android stereo has a 10-pin camera input, choose a 10-pin RCA video adapter harness for a direct plug-and-play connection.
• If you are wiring a 12V camera into a stable-power system, choose a 10-pin harness designed for constant DC 12V with solder or heat-shrink connections.
• If you are retaining a factory camera during a radio replacement, choose a vehicle-specific retention harness with the correct RCA connection and camera-voltage support.
• If your vehicle uses a 24-pin camera connector or a lower-voltage factory camera, choose a 24-pin T-harness with an integrated 12V-to-6V converter.

Quick Best Backup Camera Harness Buying Checklist

• Confirm the vehicle connector Match the harness plug, pinout, trim, and factory camera configuration.
• Verify the signal format Ensure the harness supports the camera and display’s analog or digital video connection.
• Measure cable length Include the full routing path plus extra slack for hinges, bends, and service access.
• Check weather protection Choose sealed connectors and corrosion-resistant terminals for exposed wiring locations.
• Inspect construction quality Look for flexible insulation, reinforced strain relief, and securely molded connector ends.
• Review installation support Confirm that pinout diagrams, mounting clips, extension leads, and warranty details are included.

Frequently Asked Questions

What Makes A Backup Camera Harness Compatible With A Vehicle?

The best backup camera harness matches the vehicle’s factory connector, camera signal type, and available wiring path without forcing splices. A vehicle-specific plug-and-play harness usually reduces installation errors, while a universal harness can work when its pinout, video format, power leads, and connector dimensions are carefully verified.

Does A Backup Camera Harness Need To Be Weather-Resistant?

A backup camera harness should be weather-resistant when it runs through a tailgate, bumper, or exterior body channel. Look for sealed connectors, molded strain relief, and corrosion-resistant terminals; dielectric grease and protected routing further reduce moisture-related signal loss, especially where road spray reaches the wiring.

What Should A Backup Camera Harness Include?

An installation-ready backup camera harness should include the correct vehicle-side plug, camera connector, reverse-trigger lead, and sufficient cable length. Confirm whether the kit carries composite video through RCA or a digital signal through a proprietary plug, because incompatible pinouts can produce a blank or distorted display.

How Can Buyers Verify Backup Camera Harness Compatibility?

The best backup camera harness is compatible when its connector shape, pinout, signal format, and vehicle wiring location match the intended camera system. Check the vehicle trim, factory camera presence, head-unit input, and cable route before ordering; matching these details prevents adapters from introducing avoidable connection faults.

When Is Replacing A Backup Camera Harness Worthwhile?

A replacement backup camera harness is worth choosing when original wiring has corrosion, broken insulation, intermittent video, or loose terminals. Replacing the damaged section with a correctly pinned harness can restore a stable image without disturbing the camera itself, provided the connector and signal type match.

Final Suggestions

Choosing the best backup camera harness means matching the connector, signal format, cable length, and weather protection to your vehicle’s wiring. A properly fitted harness can simplify installation, preserve a clear reverse image, and improve reliability without unnecessary splicing or troubleshooting. Review pinouts, routing, and build quality before buying, then select the harness that gives your camera system a secure, dependable connection.
